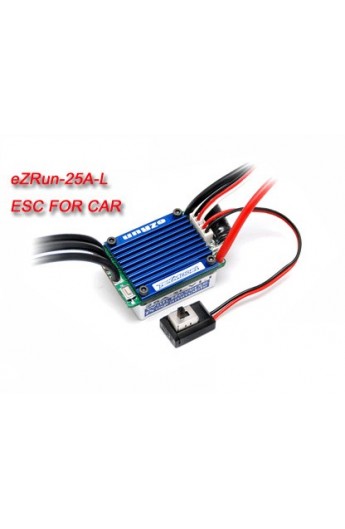

Regulator BL Auto eZRun-25A-L (#EZRUN25AL)

Features:
● Compatible with all sonsorless brushless motor.
● Use top quality electronic components to enhance the current endurance ability of the ESC.
● Excellent start-up, acceleration and linearity features.
● With 2 running modes (Racing mode and Forward/Backward mode).
● With 4 steps of maximum reverse force adjustment.
● Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
● With 4 start modes (Also called "Punch" ) from "Soft" to "Very aggressive".
● Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
● With 8 steps of timing adjustment to get the best compatibility with various of motors.
● Easily program with only one button and compatible with pocket-sized program card.

Specifications:
● Output: Continuous current 25A, burst current 90A.
● Input: 4-9 cells NiMh/NiCd or 2-3 cells LiPo. *Note1
● BEC Output: 6V/1.5A.
● Resistance: 0.0015 Ohm.
● Motor Supported: Sensorless Brushless Motor
● Suitable Brushless Motor: 9T and > 9T
● Suitable Car: 1/10, 1/12 on-road or off-road cars / trucks for normal race or sportful race.
● Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
● Weight: 30g(Without wires)

*Note1: For 4-6 Cell Ni-xx: You needn't change the fan coming with the ESC; For 7-9 Cell Ni-xx: You must change the fan because it cannot work with such a high voltage, so please choose a high voltage fan or supply the fan from the receiver (+6V);

ATENTIE: Scurtcircuitarea iesirilor regulatorului intre ele sau spre nul cauzeaza defectarea instantanee a acestuia. De asemenea, depasirea valorilor curentilor maxim de iesire sau de BEC duce la defectarea regulatorului.
